Transceiver

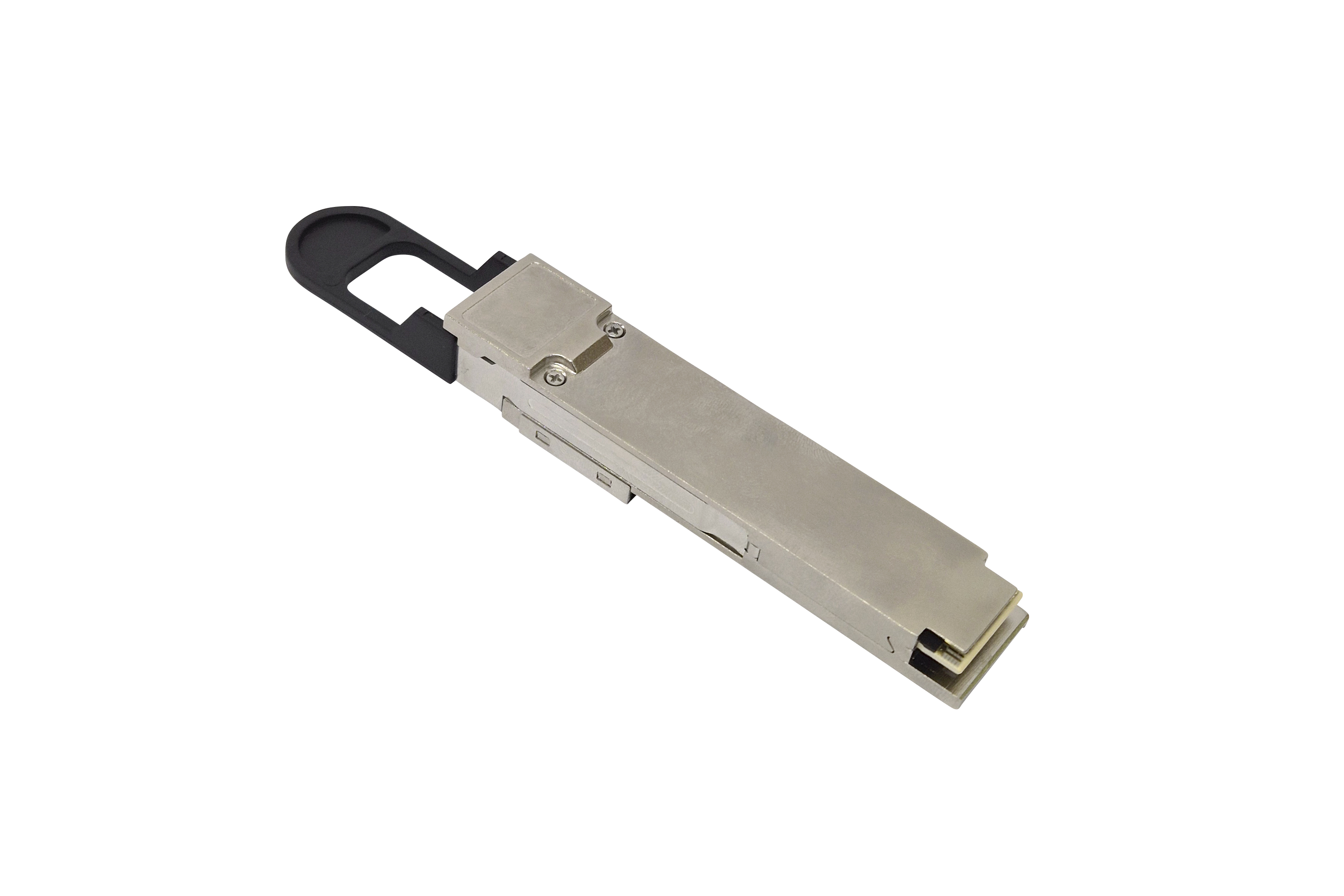

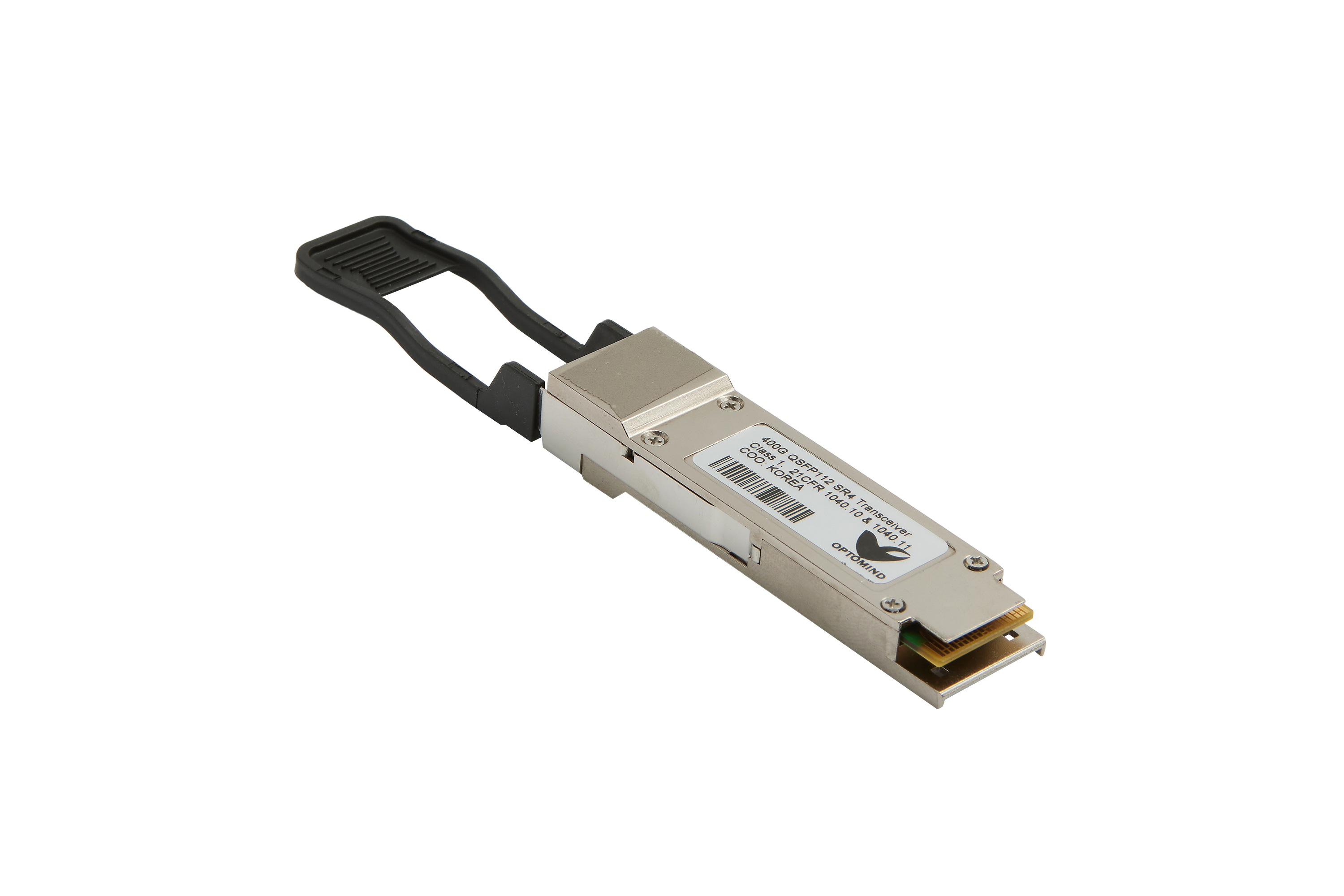

400G QSFP112

Key Features

  • Data rate: 53.125 GBd per lane
  • 4 channels of 100G-PAM4 modulation
  • Single 3.3 V power supply
  • Low power consumption: 6.6 W per cable end
  • Up to 100 m with OM4 fibers
  • MPO-12/APC optical connectors
  • Hot pluggable
  • Management interface: CMIS 5.1
  • Commercial operating case temperature range:
    0 to 70°C
  • RoHS/REACH compliant







Applications

  • InfiniBand NDR , IEEE 802.3ck 400GAUI-4
  • Datacenter: servers, switches, storages
    , and other adapter cards
  • Proprietary HPC interconnections


Request for a data sheet
