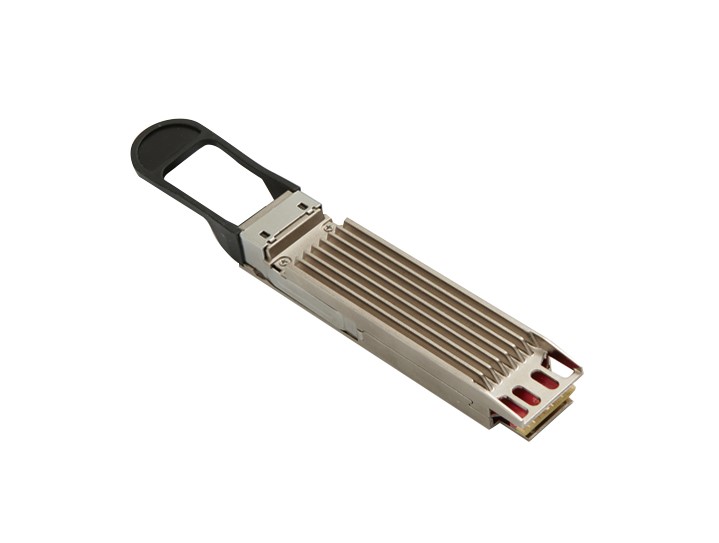

Transceiver

400G OSFP56

Key Features

  • Low latency analog CDR electronics-based
  • Multi-data rate typical 53.125 Gb/s per lane
  • Single 3.3 V power supply
  • Low power consumption: 7.2 W per cable end
  • Up to 100 m with OM4 fibers
  • MPO-16 APC optical interface
  • OSFP MSA compliant
  • CMIS 4.0 compliant
  • Commercial operating case temperature range:
    0 to 70°C
  • Hot pluggable
  • RoHS/REACH compliant
  • LSZH, LSZH/OFNR or OFNP-rated cable




Applications

  • IEEE 802.3cm 400GBASE-SR8
  • Datacenter: servers, switches, storages
    and NIC adapters
