Transceiver

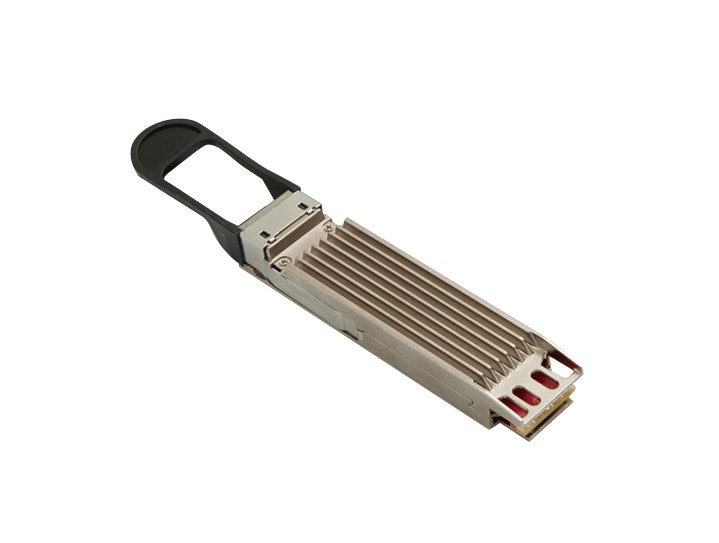

800G OSFP800

Key Features

  • 800G SR8 multimode transceiver
  • Data rate typical 53.125 GBd per lane
  • Two ports of 4 channel 100G-PAM4 modulation
  • Finned-top OSFP connector shell
    (Flat-top OSFP connector shell is available.)
  • Single 3.3 V power supply
  • Low power consumption: 14 W with all CDRs enabled
  • Up to 50 m with OM4 fibers
  • Two MPO-12/APC optical connectors
  • Management interface: CMIS 5.1
  • Commercial operating case temperature range:
    0 to 70°C
  • Hot pluggable
  • RoHS/REACH compliant











Applications

  • Ethernet, InfiniBand NDR, IEEE 802.3df 800GBASE SR8
  • Datacenter: servers, switches, storages
    , and other adapter cards
  • Proprietary HPC interconnections











Request for a data sheet
