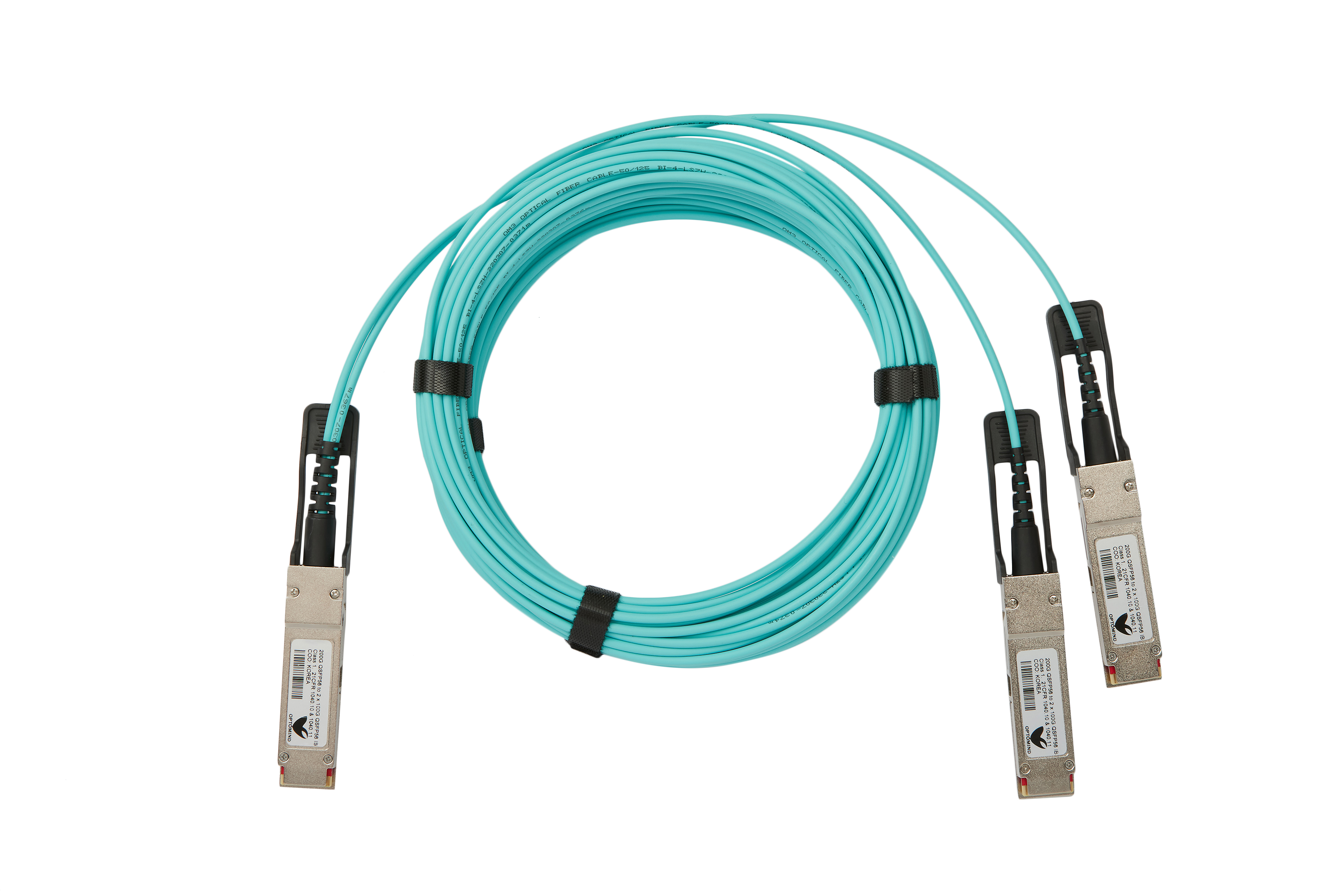

Breakout AOC

200G QSFP56 - 2x QSFP56

Key Features

  • Low latency DSP-free electronics-based CDR
  • Multi-data rate typical 53.125 Gb/s per lane
  • PAM4 modulation
  • 2 independent full-duplex
  • Single 3.3 V power supply
  • Low power consumption: 3.6 W on 200G end,
    2.3 W on 100G end
  • Up to 100 m length with OM3 fibers
  • SFF-8665 compliant
  • SFF-8636 compliant management interface
  • Commercial operating case temperature range:
    0 to 70°C
  • Hot pluggable
  • RoHS/REACH compliant
  • LSZH, LSZH/OFNR or OFNP-rated cable




Applications

  • IBTA InfiniBand HDR
  • IEEE 802.3cd 200GBASE SR4
  • Datacenter: servers, switches, storages
    and NIC adapters
  • Proprietary HPC interconnections
