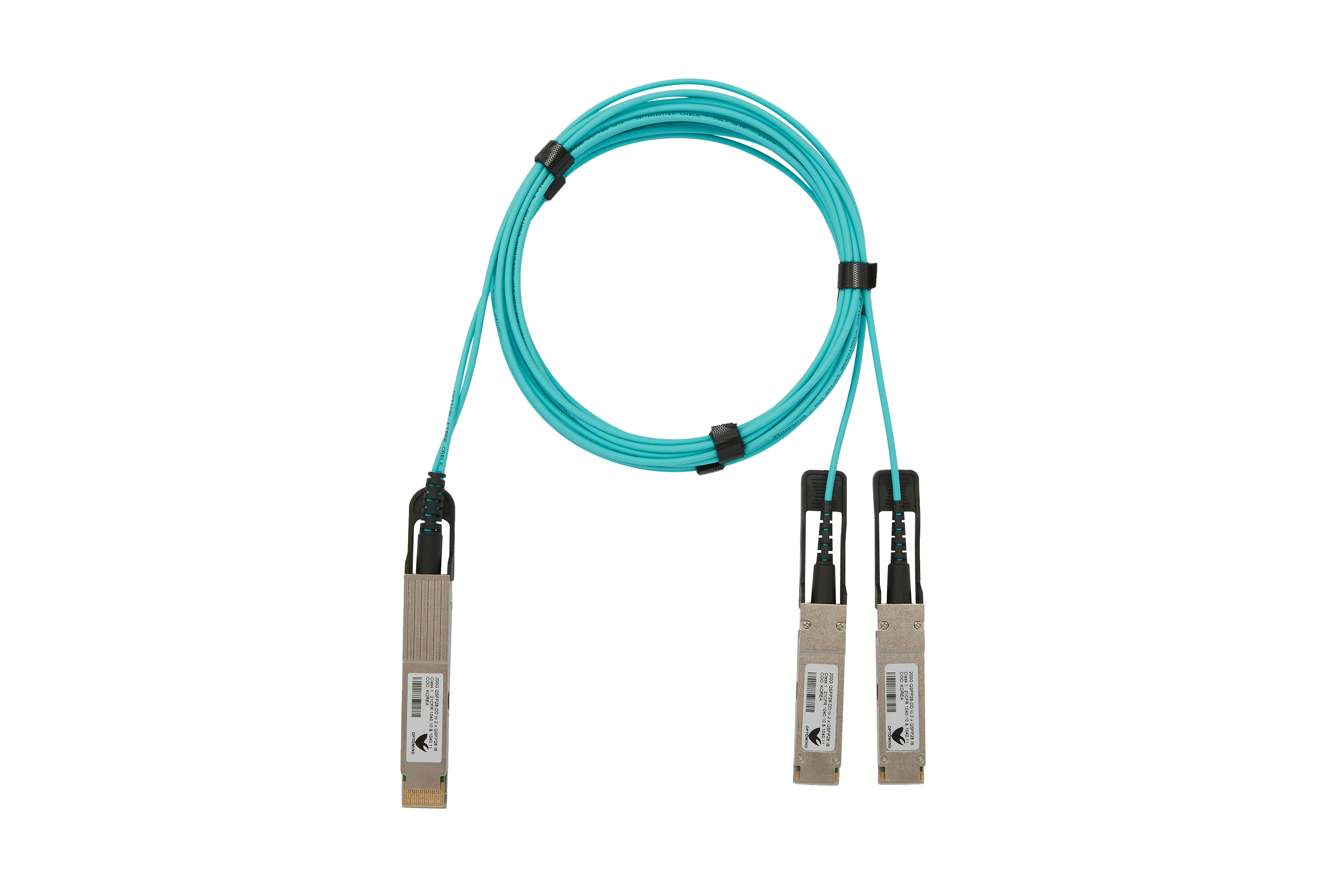

Breakout AOC

200G QSFP28-DD - 2x QSFP28

Key Features

  • Up to 25.78 Gbps per channel
  • 2 independent full-duplex
  • Single 3.3 V power supply
  • Low-power consumption: 3.3 W on QSFP28-DD end,
    1.65 W on QSFP28 end
  • Up to 100 m with OM3 fibers
  • Hot pluggable
  • Commercial operating case temperature range:
    0 to 70°C
  • LSZH, LSZH/OFNR or OFNP-rated cables
  • RoHS/REACH compliant



Applications

  • InfiniBand EDR
  • Dual 100G/200G Ethernet
  • Data center: Switches, servers, storages
    and NIC adapters
  • Proprietary HPC interconnections
