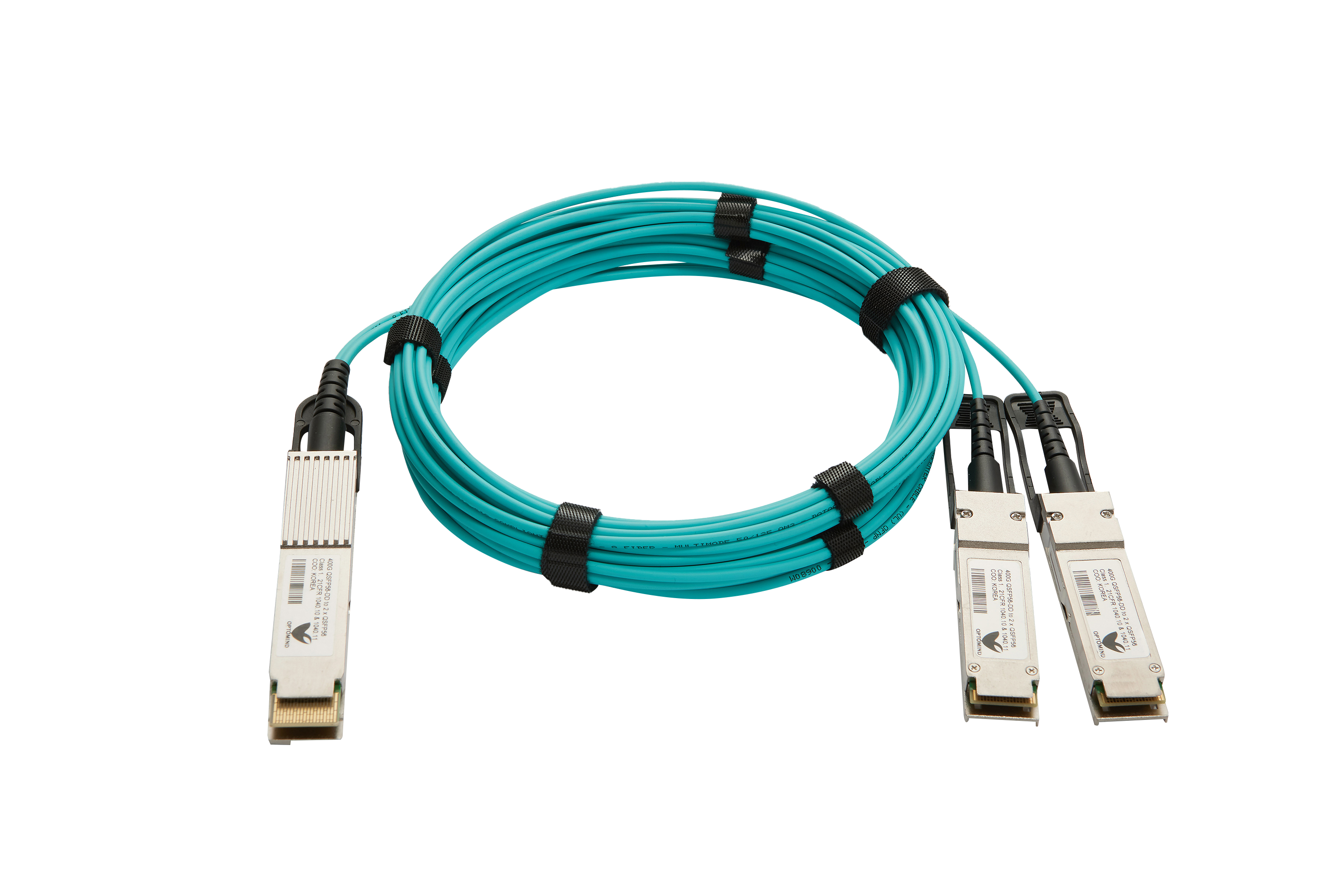

Breakout AOC

400G QSFP56-DD - 2x QSFP56

Key Features

  • Low latency analog CDR electronics-based CDR
  • Multi-data rate typical 53.125 Gb/s per lane
  • PAM4 modulation
  • 2 independent full-duplex
  • Single 3.3 V power supply
  • Low power consumption : 7.6 W on 400G end,
    3.6 W on 200G end with all CDRs enabled
  • Up to 100 m length
  • QSFP-DD MSA compliant
  • CMIS 4.0 compliant
  • Commercial operating case temperature range:
    0 to 70°C
  • Hot pluggable
  • RoHS/REACH compliant
  • LSZH, LSZH/OFNR or OFNP-rated cable






Applications

  • IEEE 802.3cm 400GBASE SR8
  • Datacenter: servers, switches, storages
    and NIC adapters
  • Proprietary HPC interconnections
