Transceiver

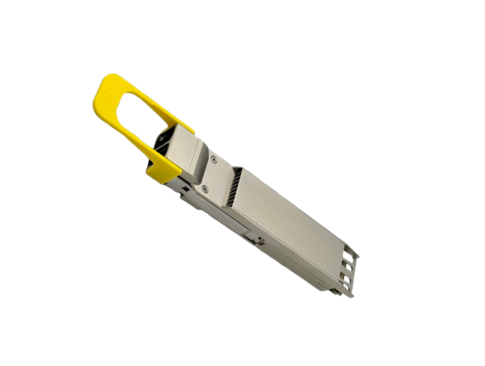

1.6T OSFP DR8

Key Features

  • 1.6T dual-port single mode transceiver
  • Data rate typical 106.25 GBd per lane
  • Two ports of 4 channel 200G-PAM4 modulation
  • OSFP (Closed-top)
  • Single 3.3 V power supply
  • Maximum power consumption: 25 W
  • Maximum reach Up to 500 m
  • Two MPO-12/APC optical connectors
  • Management interface: CMIS 5.1
  • Commercial operating case temperature range:
    0 to 70°C
  • Hot pluggable
  • RoHS compliant





Applications

  • Ethernet, InfiniBand NDR, IEEE 802.3dj
  • Datacenter: servers, switches, storages
    , and other adapter cards
  • Proprietary HPC interconnections





Request for a data sheet
