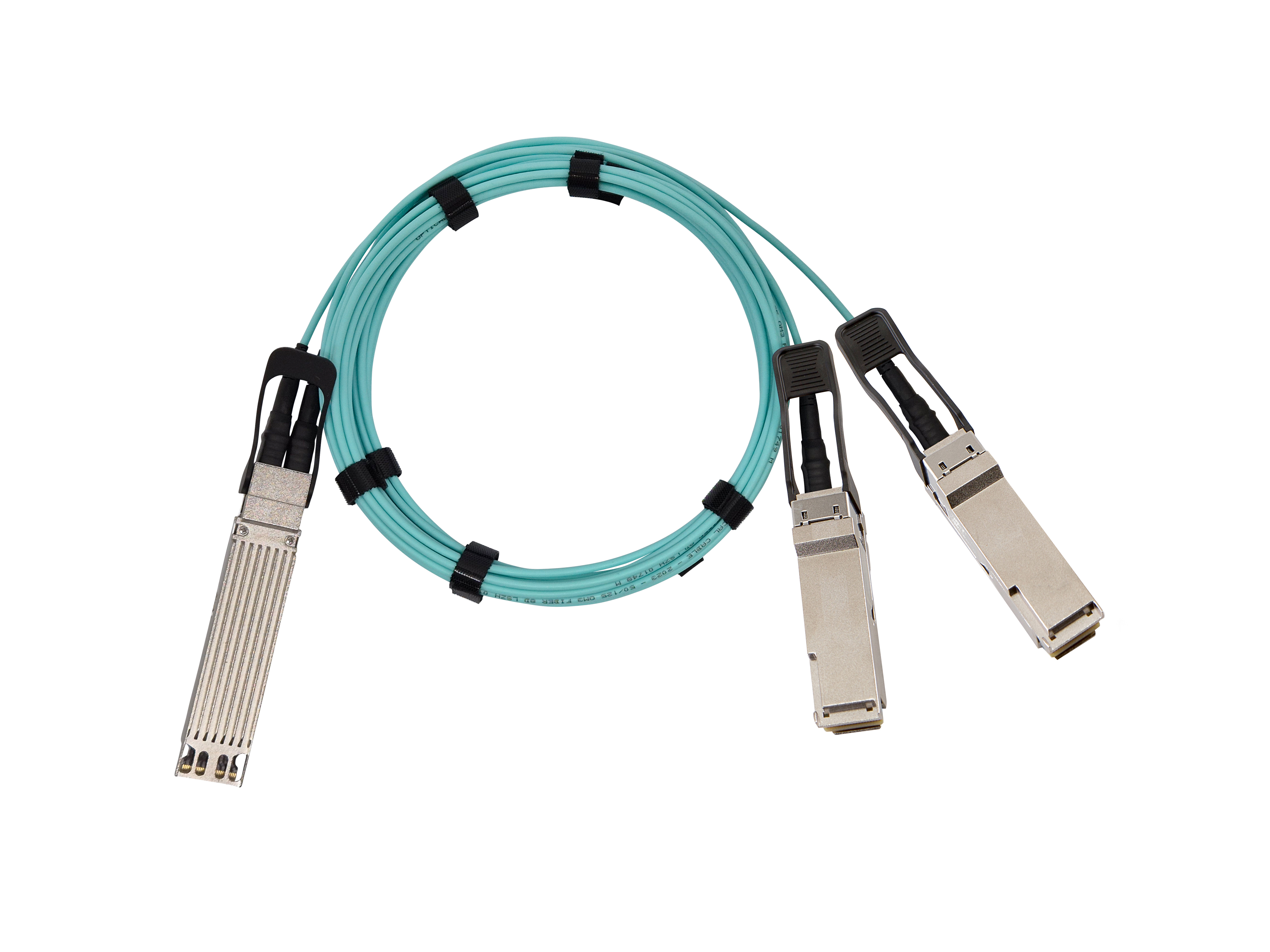

Breakout AOC

400G OSFP - 2x QSFP56

Key Features

  • Data rate: 53.125 GBd per lane
  • 8 channels of PAM4 modulation
  • Single 3.3 V power supply
  • Low power consumption: 8.0 W on 400G end, 3.9 W on 200G end
  • Up to 100 m with OM4 fibers
  • Hot pluggable
  • Management interface: CMIS 4.0
  • Commercial operating case temperature range:
    0 to 70°C
  • RoHS/REACH compliant
  • LSZH, LSZH/OFNR or OFNP-rated cable


















Applications

  • InfiniBand NDR, IEEE 802.3ck 400GAUI-4
  • Datacenter: servers, switches, storages
    ,and other adapter cards
  • Proprietary HPC interconnections
